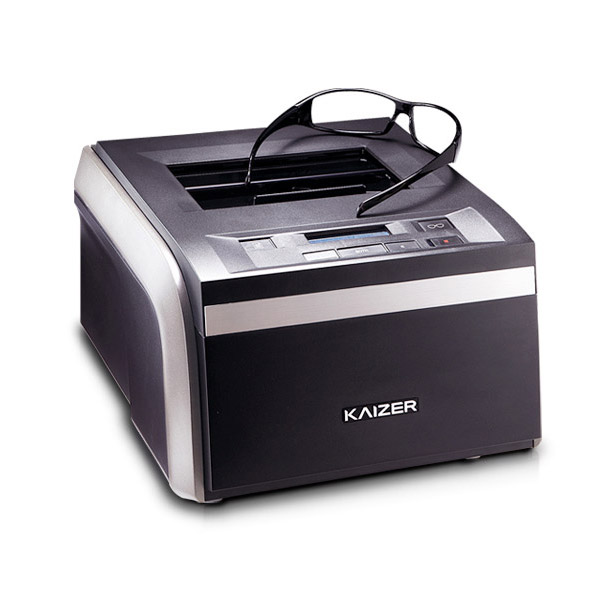

Huvitz Kaizer HFR-8000 Frame Reader
Or please call FAISAL: 079 242 2817 or AHMED: 082 414 1472
Dynamic speed and precision in your business!
Click here to view the pdf catalogue
16,000pts high-resolution scanning and digital filtering tech
• Precise scanning of all metal and plastic frames.
• Binocular and monocular tracing are both available to meet users’accuracy and efficiency needs.
Perfect process of stereoscopic scan feature.
• Accurate tracing of high-curve frames with unique HUVITZ mechatronic technology
Now special frames are not challenging!
• Accurate scanning for concave shape, sharp edge, and narrow frame is very easy!
Slide cover that prevents dust accumulation.
• Keeping out dust will ensure durability and precision.
Specifications
| Tracing Type | Automatic 3D Binocular Tracing |
|---|---|
| Tracing Mode | Auto, Semi-Auto |
| Tracing Size | Frame ø16.0~92.0mm, pattern ø16.0~84.0mm |
| Frame Material | Metal, Hard Plastic, Soft Plastic |
| Data Processing | FPD, Frame Curve, Circumference, 3D Angle Concave Shape |
| Dimensions / Weight | 284(W) x 320(D) x 190(H)mm / 8kg |
| Power Supply | 100 – 240V, 50 / 60Hz |
| Power Consumption | 32W |
