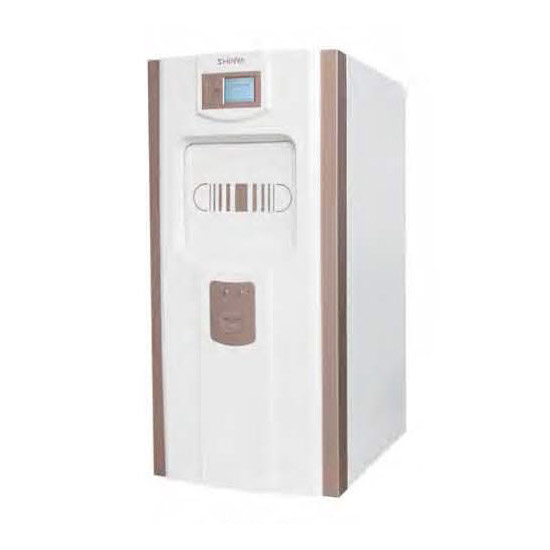

Shinva H₂0₂ Low Temperature Plasma Sterilizer

Click here to view the pdf catalogue

Introduction

SHINVA Plasma sterilizer takes H₂O₂ as sterilizing agent and form plasmatic state of H₂O₂ by electromagnetic field under low temperature. It combines both gaseous and plasmatic H₂O₂ to make sterilization for the items in chamber and decomposes the residual H202 after sterilization.

It is widely used in CSSD or other medical institute for the sterilization of electric wire and cable, optical glasses and glass lens, power equipment and batteries, endoscopes, catheter, nonmetallic and other wet or heat sensitive instruments.

Scope of application

The sterilizer is applicable to sterilize the medical instruments that are thermolabile or non-moisture tight. It is not applicable to the sterilization of liquid, powder or cotton fabrics. All the medical instruments that meet the following conditions can be processed by this sterilizer.

PS-100:

• Metal tubular instrument: inner diameter < 1mm; lengths 500mm
• Nonmetal tubular instrument: inner diameter < 1mm; lengths 2000mm

PS-200:

• Metal tubular instrument: inner diameter < 0.8mm; lengths 300mm
• Nonmetal tubular instrument: inner diameter < 1mm; lengths 1000mm

Product features

• Low temperature sterilization
  The sterilization temperature is 50±5 C which is much lower than steam sterilization. It is dry sterilization that has no hand on instrument, so it extends the device service life.
• Safe and environment friendly
  The matter after sterilization is water and oxygen molecule that have no toxic harm to staff or patient and there is no need for drainage or air exhausting. High efficient H₂O₂, filter is installed in the exhausting outlet to guarantee no H₂O₂ pollution to the environment.
• Time-saving and cost-efficient
  Rectangular chamber has greater capacity, high efficiency and short sterilizing cycle (50mins). The sterilized articles can be used directly without extra processing. It can increase the instrument turnover and decrease the storage of precious instrument to cut cost indirectly.
• Convenient
  Only power supply is needed for Installation. The system adopts man-machine control interface with intelligent program design. Equipped with foot switch (alternative) and integrated biological incubator (alternative).
• Multiple models
  The door structure of the sterilizer is customizable (single or double door). To meet pharmaceutical factory needs, chamber material can be stainless steel.
• Reliable sterilization
  The chamber adopts alloy material which has good thermal conductivity to guarantee a stable temperature in the chamber. The purification system makes the H₂O₂ diffuses uniformly. The low temperature storage system provides a stable concentration of H₂O₂
• Safe sealing door
  The sterilizer adopts mandril-driving auto overhead door with reliable sealing function and safe lock device to guarantee personal safety.
• Data management
  The 2048M storage (alternative) can store original data for inquiring. Mini printer can be used to print operation data timely. There are two types of record methods to guarantee the data is 100% acquirable.
• Advanced configuration
  The vacuum pump. controller, pressure transmitter and other key components are world famous brand. The sterilizer equipped with multiple programs and bar code identification system (alternative).
• Reassuring
  We provide comprehensive operation training materials to key components maintenance intelligent reminding system for your convenience.
