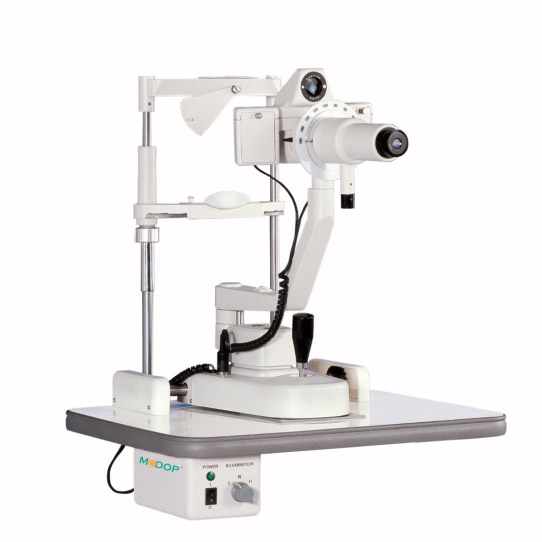

Medop YZ-38 Keratometer

Click here to view the pdf catalogue

SPECIFICATIONS

Magnification of Eyepiece ........................................................... 15X
Total Magnification ...................................................................... 18X
Illumination ................................................. 2X 6V/12W halogen bulb

Measurement Range:
Radius of Curvature ........................................................ 5.5-1.1 mm
Diopter .... ... ...................................................................... 30-60Dpt
Reading lncrement(radius) ................................................... 0.02mm
Measuring Accuracy ............................................................. 0.25Dpt
Compensation Refractive index n .......................................... 1.3375
Minimum Surface required ....................... r=5.5 4>1 .65 r=7.5 4>2.3
For measurement. ................................................ r=11 4>4 .00(mm)
Angle Measuring Disc .......................................................... 0° - 180°
Input Voltage ................................................................... 110V/220V
