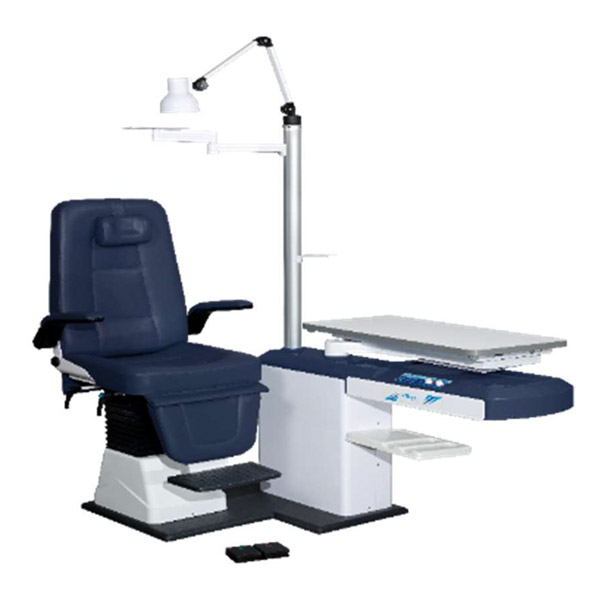

Ophthalmic Refraction Unit

Click here to view the pdf brochure

Click here to view the pdf catalogue



STITCH LESS INTEGRATED FOAM YOU CANNOT GET DIRTY

  • New stain proof material can repel virtually most of the liquids to maintain hygenic.
  • New material can handle abuse and stains and keeps the chair like a new for long time.
  • New material makes it more slim, spacious and comfortable.
  • It also helps in easy ingress and egress.



SPECIALITIES

  • Need-based, highly economical combination unit.
  • Maximum operative functionality; minimum space consumption.
  • Comprehensive, easy-to-use console panel control with memo key.
  • 165-degree reclining, gas spring-driven chair.
  • Smooth, CE-marked German DC motor-driven elevation.
  • Sliding table with space for two instruments.
  • Holder for hand instruments.
  • Dust-free, enclosed Trial Lens Rack with straight, unobtrusive, in & out sliding movement.
  • Sturdy Lamp Pole to support multi-instrument mounting.
  • Cross-integrated Chair Raising System & Sliding table Top.
  • Comfortable Polyurethane seat.
  • Moulded plastic-covered base area.
  • Broad, square format platform for stable mounting & jerk-free perforrnance.



CHAIR

  • Fully flexible, rotating recliner chair
  • Silent, CE-marked, German DC motor-driven, up & down movements and inclination, and Zero Position Memory
  • Adjustable footrest, which can be fully raised to sleeping position
  • Foot Switch for fluid up / down movement control
  • Comfortable polyurethane-filled Seat
  • Full movement control from back rest panel.





Specifications

 Min. height Chair   550 mm +- 10 mm
 Max. Height Chair   750 mm
 Back rest Movement   Manual
 Floor to Sliding Arm Height   875 mm
 Pole Height   1100 mm
 Max Area Chair unit   2390 x 1250 mm
 Rotation of Chair   180 Degree
 Up & Down Movement Stroke   200 mm
 Max Load carry   150 Kg
 Power   230 v 50/60 HZ
 Total Weight   250 Kg
 Floor To Over Head Lamp Height   2180 mm
