Contains patented internal calibration technology, which automatically controls the standardized LEDs (light emitting diodes) output. When this lighting technology is combined with a universal standard power supply, the result is consistent standardized lighting that makes the ESV3000 the most accurate, easy-to-use tester for evaluating ETDRS and logMAR acuity. Simply turn on the device and with a push of a button, the ESV3000 automatically calibrates to a photopic light level of 85 cd/m2 or a mesopic level of 3 cd/m2. These light levels are recommended by the National Academy of Sciences’ Committee on Vision Testing Standards.
|
Compare Cabinets |
ESV3000 with Calibrated LED Lights |
ESC2000 with LED Lights |
|
Self Calibrate to 85 cd/m2 |
? Yes |
? No |
|
Provide Mesopic Testing |
? Yes |
? Yes†|
|
Provide Uniform Light |
? Yes |
? Yes |
|
Ready for Immediate Use |
? Yes |
? Yes |
|
Universal Power Supply |
? Yes |
? Yes |
|
Custom Light Levels Available |
? Yes |
? Yes |
|
Built-in Glare Light Receptacle |
? Yes |
? No |
|
Remote Controlled |
? Yes |
? Yes |

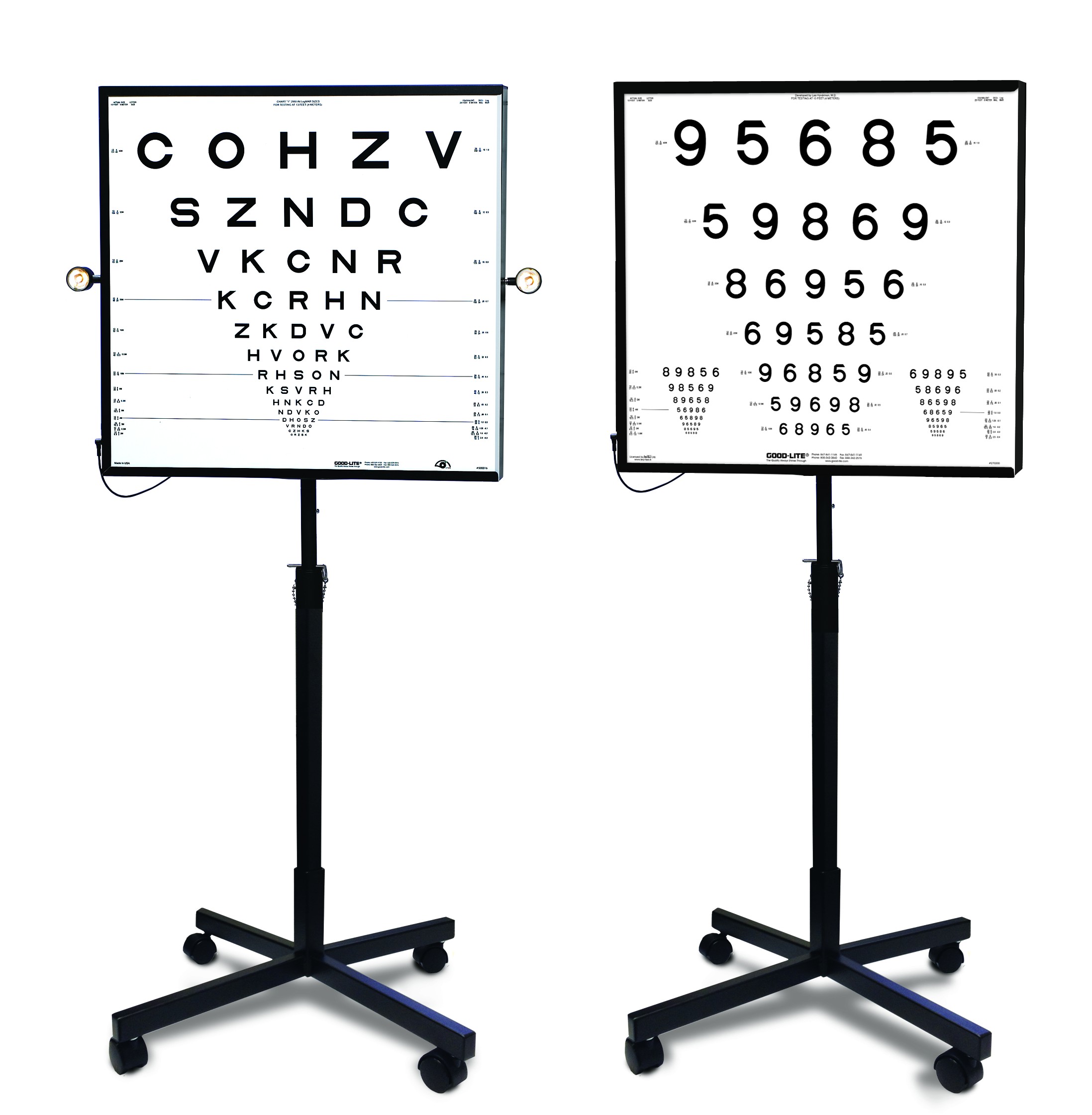

ESV3000 ETDRS Standardized Viewer
The only ETDRS viewing cabinet that self-calibrates illumination on the chart surface for both photopic (85 cd/m2) and mesopic (3 cd/m2) light level testing. The unit utilizes the most advanced self-monitoring LED light source patented technology, providing uniform and highly calibrated illumination across the entire testing surface (Patent 5,078,486).
ESV3000 Kit With Original Series 4 Meter ETDRS Charts
Includes the ESV3000 viewer, ESV3000 stand, and 3 Original Series 4 meter ETDRS charts.*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 500600
ESV3000 Kit With “2000” Series 4 Meter ETDRS Charts
Includes the ESV3000 viewer, ESV3000 stand, and 3 “2000” Series 4 meter ETDRS charts.*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 500601
ESV3000 Kit With “2000” Series 3 Meter ETDRS Charts
Includes the ESV3000 viewer, ESV3000 stand, and 3 “2000” Series 3 meter ETDRS charts.*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 500602
ESV3000 ETDRS Viewer Individual Items
ESV3000 ETDRS Standardized viewer only.* . . . . . . . . . . . . . . . . . . . . . . . . . . .ESV3000
ESC2000 ETDRS Standardized Viewer
Our more cost effective ETDRS Viewer when calibrated light levels are not required.
ESC2000 Kit With Original Series 4 Meter ETDRS Charts
Includes the ESC2000 viewer, ESC2000 stand, and 3 Original Series 4 meter ETDRS charts.*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 500700
ESC2000 Kit With “2000” Series 4 Meter ETDRS Charts
Includes the ESC2000 viewer, ESC2000 stand, and 3 “2000” Series 4 meter ETDRS charts.*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 500701
ESC2000 Kit With “2000” Series 3 Meter ETDRS Charts
Includes the ESC2000 viewer, ESC2000 stand, and 3 “2000” Series 3 meter ETDRS charts.*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 500702
ESC2000 ETDRS Viewer Individual Items
ESC2000 ETDRS Standardized viewer only.* . . . . . . . . . . . . . . . . . . . . . . . . . . ESC2000
