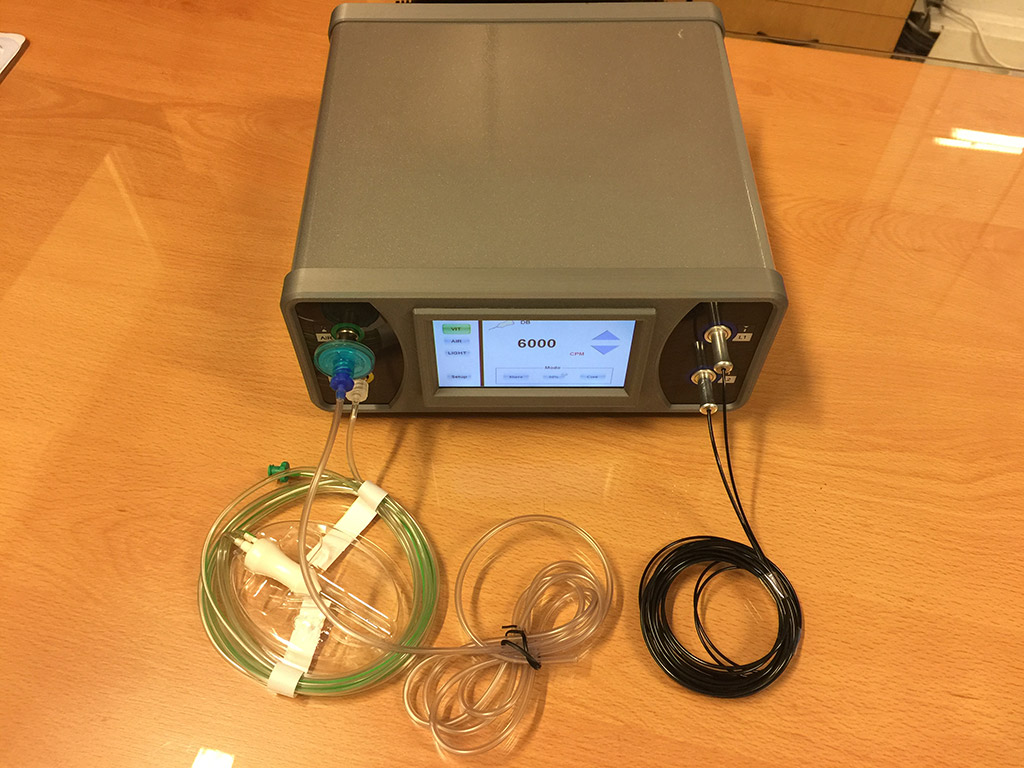

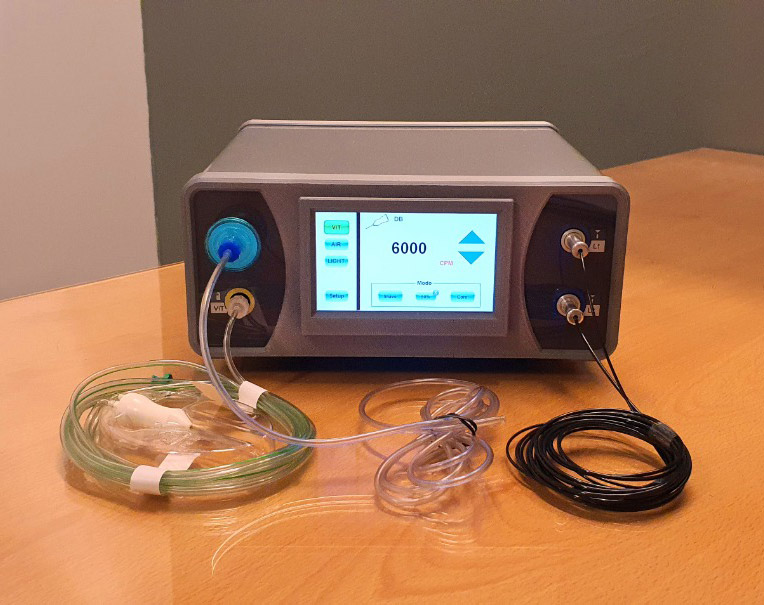

Vitrector

High Speed Vitreous Cutter – Air Exchange
Active Infusion System – LED Light Source

Click here to view the pdf catalogue



FEATURES

  • 23G / 25G rates up to 6000 cpm.

  • Core, fifty and shave cutter mode.

  • Air exchange up to 90 mmHg.

  • Infusion range up to 200 mmHg.

  • Dual LED Light source.

  • Internal compressed air source.

To use with any surgical system that has a pneumatic or electric vitreous cutter drive source.



TECHNICAL SPECIFICATIONS

Physical and electrical

Physical dimensions (width x height x depth)
Weight

Electrical power supply
Electric power

Operating temperature
Humidity
Storage temperature



23,5cm x 11cm x 23cm
2.1Kg.

24V/5A
63W

+100C to +300C
0 to 85% RH no condensation
-200C to +500C

Vitrector

Lumen
Cuts per minute
Increase

Cutting cycles



23 / 25 gauge
600cpm to 3000cpm
Hasta 6000cpm (double blade)
100cpm
Modos: Core – 50% – Shave

Infusion

Work pressure
Increase
Visual alarm



20 mmHg. at 200 mmHg.
10 mmHg.
± 10% of the set value

Endo Lighting

Guy
Color temperature
Fiber Type



Dual LED
5000k and 4000K
Focal, Panoramica and Chandellier
Display LCD-TFT 4.3” color TouchScreen
